ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller

$24.99
$29.99
$24.99
Shipping calculated at checkout.

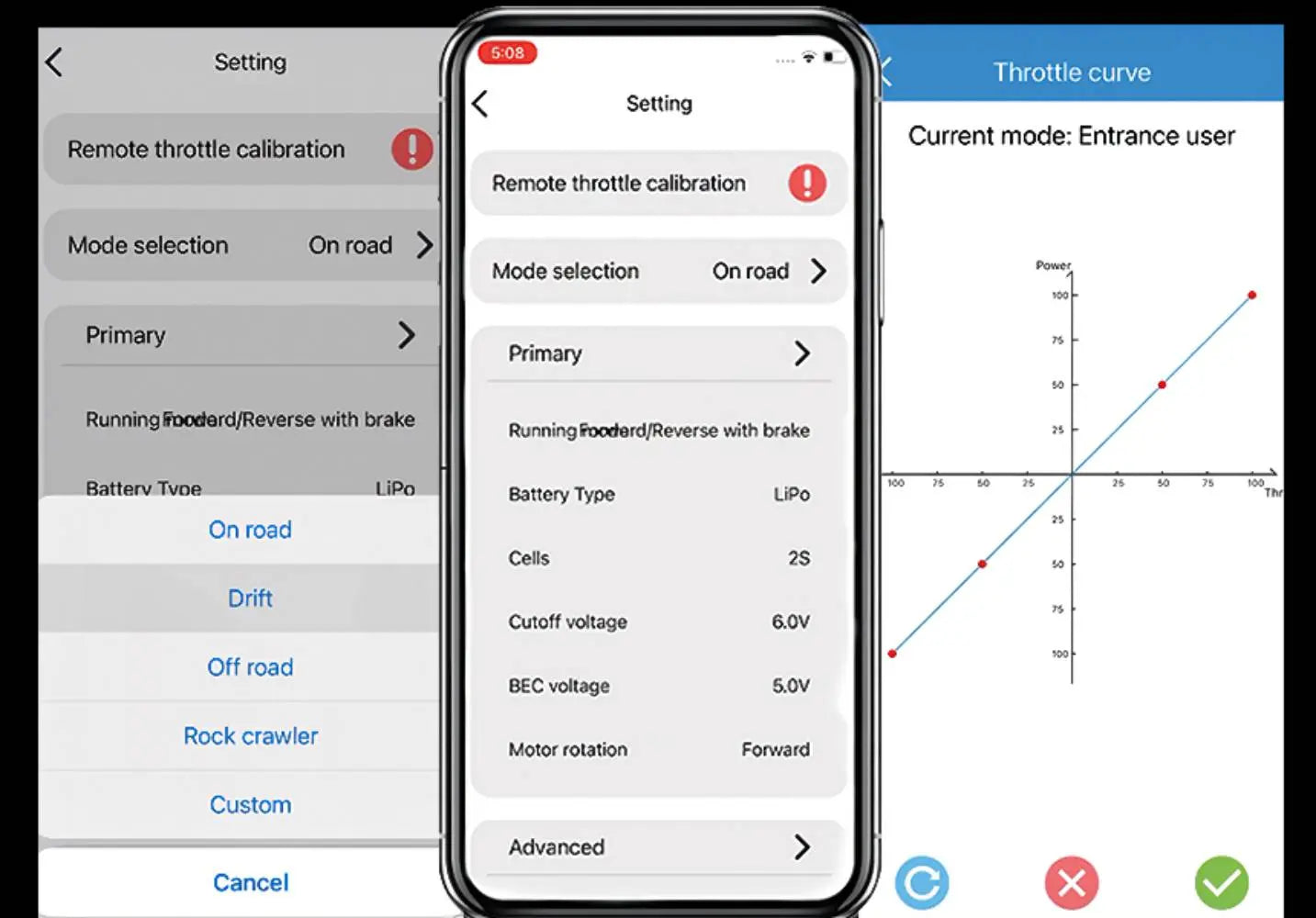

  • 【Bluetooth connection function】 You can establish a wireless connection with your mobile phone without extra accessories. The mobile App has multiple programmable parameter settings, real-time data query, OTA upgrade and other operations. It is powerful, convenient and easy to use.
  • 【Precise adjustment】 0.1V step adjustment, curve adjustment of brake and accelerator parameters, allowing users to be more handy and manipulative, and accurately adjust the forward power and braking force of the motor,specially designed for RC Crawler that characteristics operating on toughest terrain.
  • 【Advanced BEC Function】Built-in BEC with adjustable output functions,outputs up to 3A continuous current and supports 5V to 7.5V via ISD Go APP. Supports various powerful RC applications and high voltage servos.
  • 【Multiple protection functions】battery low voltage protection, over temperature protection, throttle out of control protection, BEC overvoltage and undervoltage protection.
  • 【Strong waterproof performance】Fully waterproof design for all conditions. (Note: Please clean and maintain after use to avoid corrosion)


Item Brand:ISDT
Model:ESC70
Cont./Peak Current:70/120A
Motor Type:540/550/775 Brushed Motor
Application:1/8 1/10
Support batteries:Lipo(2-3S)/NiMH(6-8S)
BEC Output:3A amp rating,5V-7.5V Switch (Stepping 0.1V)
Wire/Connectors:16AWG 200mm / No
Explanation for LED Status
Power On:Short press once-white LED flashes
Standby:Green LED on
Error:Red LED flashes
Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes
Bluetooth Connected: Blue LED ON
Power Off: Long press once
Package included:
1X 70A ESC

PRODUCT MANUAL

Product Manual of ESC 70

DELIVERY

For non-pre-sale products, ISDT processes the order within 2-3 working days after the order was placed, once confirmed, we will ship it according to the order time.

We provide 3 shipping methods:

Shipping Method and Estimated Shipping Time:
Standard Shipping: 15-20 working days
Fast Shipping: 7-15 working days
Expedited Shipping: 3-7 working days
The shipping time should be subject to the time announced by the shipping company. Once the products of your order leave our warehouse, the actual delivery may be affected by events which are beyond our control. Thus, we do not assume any responsibility for any delay in delivery due to unexpected logistics related events.

If any logistics delay occurs, you may send an email to isdt0506@gmail.com, and we will do our best to contact the logistics company to help resolve the issue.
ISDT Shop
    ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT ESC 70 RC Electronic Speed Controller,WP 1080 70/120A Brushed Motor Electronic Speed Controller ISDT

    Guarantees

    Genuine Guarantee

    Fast Processing

    Fast Delivery

    Official After-sales

    FAQs

    The ESC already connected to the motor, but the direction of rotation is reversed, how can I do?

    Change the direction of motor rotation via ISD GO APP, no need to reset the parameters. Or interchange the two motor wires.

    What is the burst power of ESC?

    Maximum current 120A, maximum power 1500W when using 3s LiPo.

    Which PWM frequency range can the ESC cover?

    The ESC supports standard PWM signals of 1000us~2000us, but does not support narrow-band PWM signals of 750us and other serial digital receivers.
