ISDT

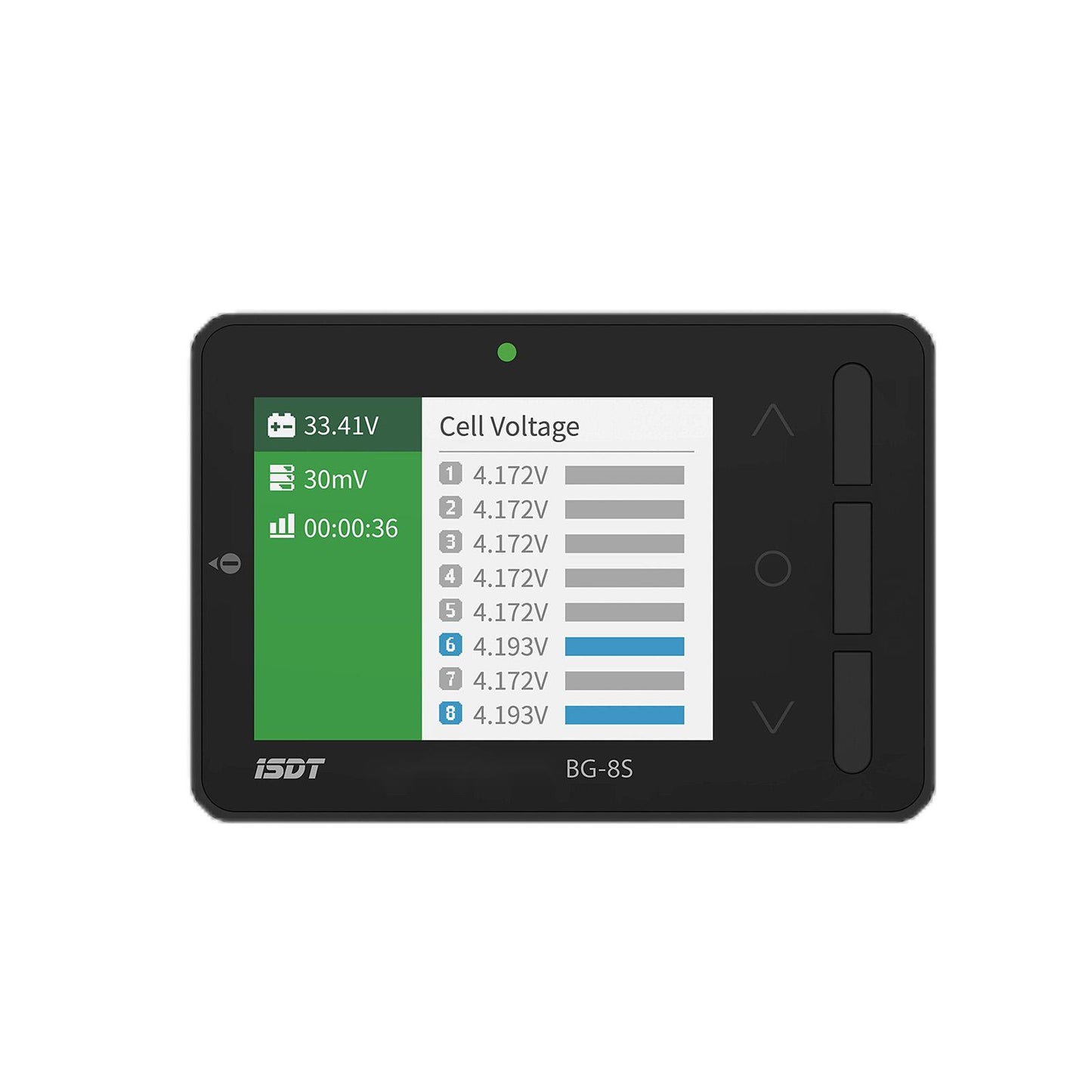

BG-8S Battery Meter, LCD Display Digital Battery Capacity Balance Checker for LiPo Batteries
BG-8S Battery Meter, LCD Display Digital Battery Capacity Balance Checker for LiPo Batteries
Couldn't load pickup availability
PRODUCT MANUAL
PRODUCT MANUAL
DELIVERY
DELIVERY
For non-pre-sale products, ISDT processes the order within 2-3 working days after the order was placed, once confirmed, we will ship it according to the order time.
We provide 3 shipping methods:
Shipping Method and Estimated Shipping Time:
Standard Shipping: 15-20 working days
Fast Shipping: 7-15 working days
Expedited Shipping: 3-7 working days
The shipping time should be subject to the time announced by the shipping company. Once the products of your order leave our warehouse, the actual delivery may be affected by events which are beyond our control. Thus, we do not assume any responsibility for any delay in delivery due to unexpected logistics related events.
If any logistics delay occurs, you may send an email to isdt0506@gmail.com, and we will do our best to contact the logistics company to help resolve the issue.

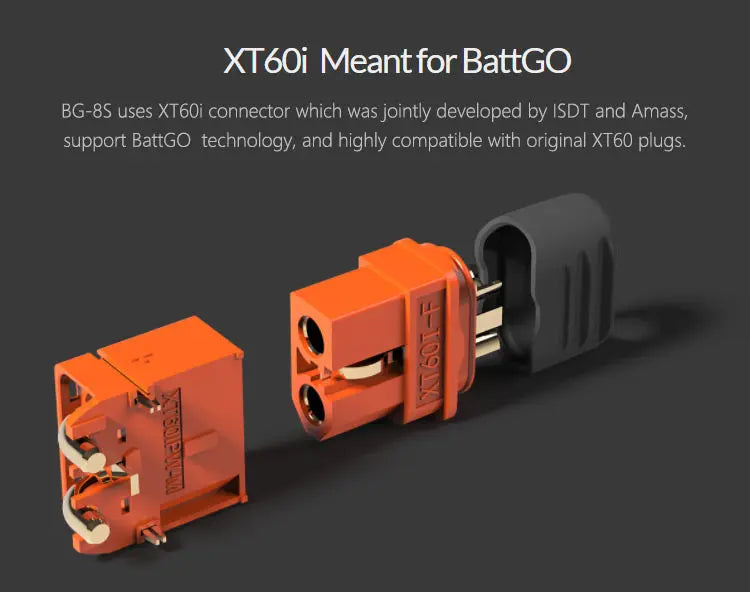

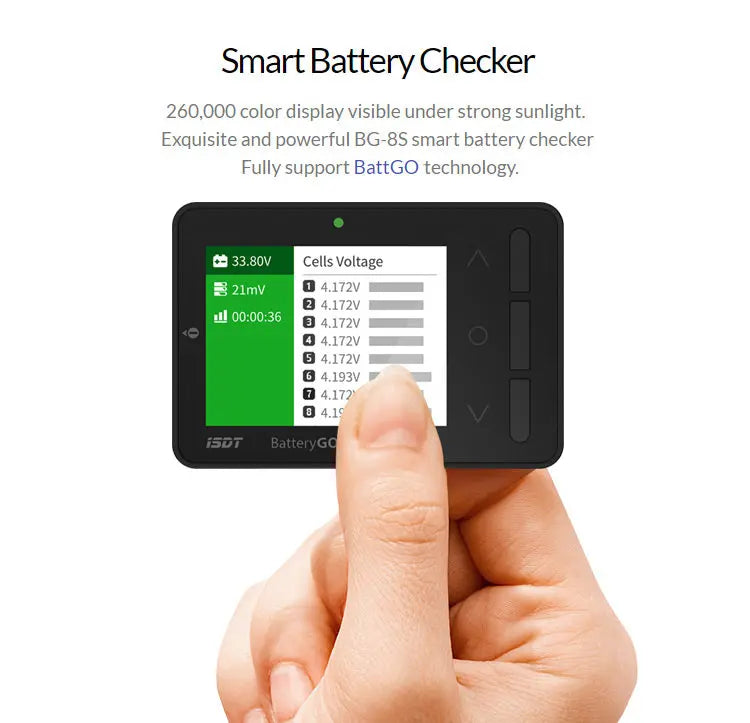

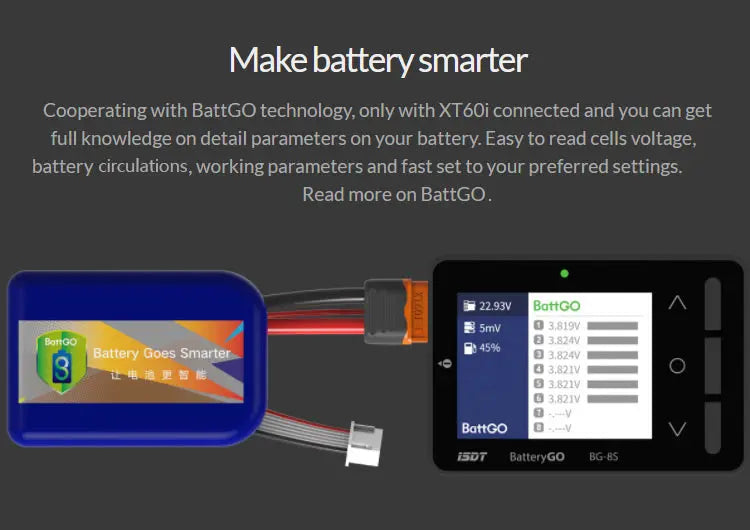

- ✔✔【Make the battery smarter】: Working together with BattGO technology, only with XT60i connected, you can get full information about the detail parameters of your battery. Easy to read cell voltage, battery cycles, working parameters and quick adjustment to your preferred settings.

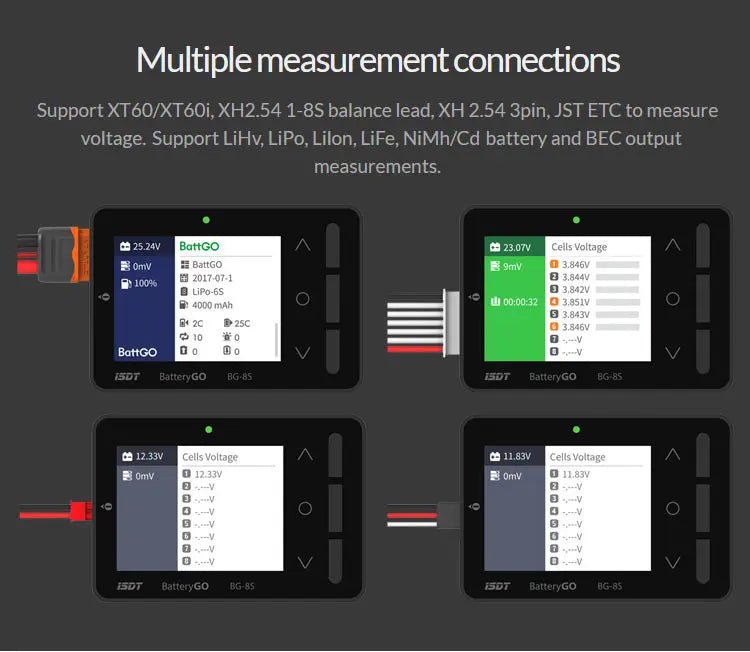

- ✔✔【Multiple measurement connections】: Support XT60 / XT60i, XH2.54 1-8S balance lead, XH 2.54 3pin, JST ETC to measure voltage. Support LiHv, LiPo, Lilon, LiFe, NiMh / Cd battery and BEC output measurements.

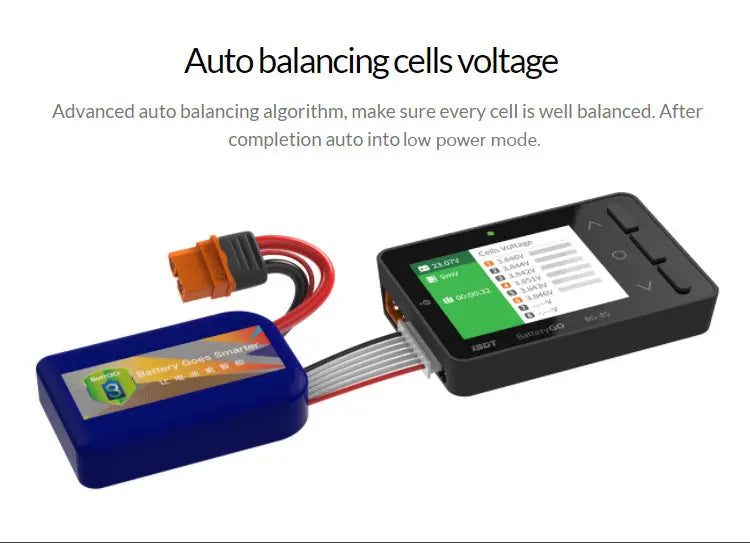

- ✔✔【Cell Balancing with Auto-Balancing】: The battery tester with balancing function helps to optimize the performance of your batteries and extend their lifespan by ensuring that the individual cells are balanced. Advanced automatic matching algorithm. Make sure each cell is well balanced. After completion, automatically enter the power saving mode.

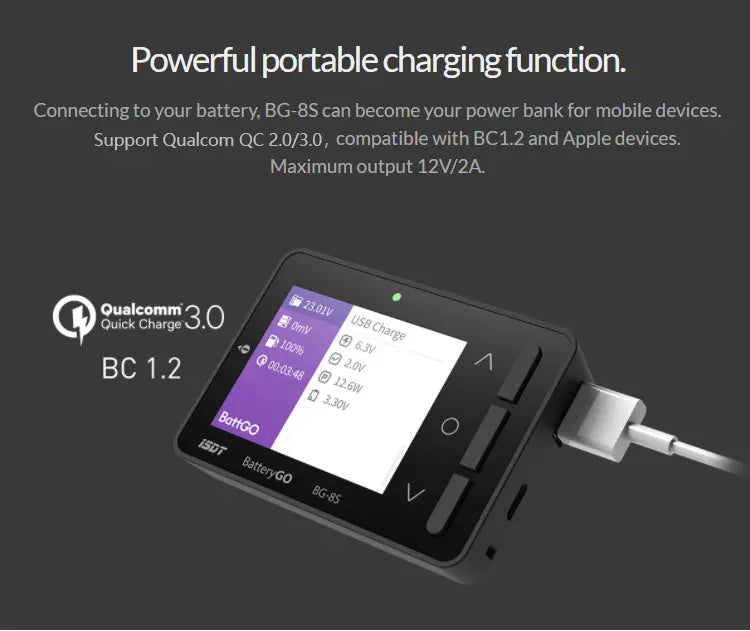

- ✔✔【Powerful, portable charging function】: The BG-8S can be connected to your battery, thus becoming a bank for mobile devices. Support Qualcomm QC 2.0/3.0，which is compatible with BC1.2 and Apple devices. Maximum output 12V/2A.

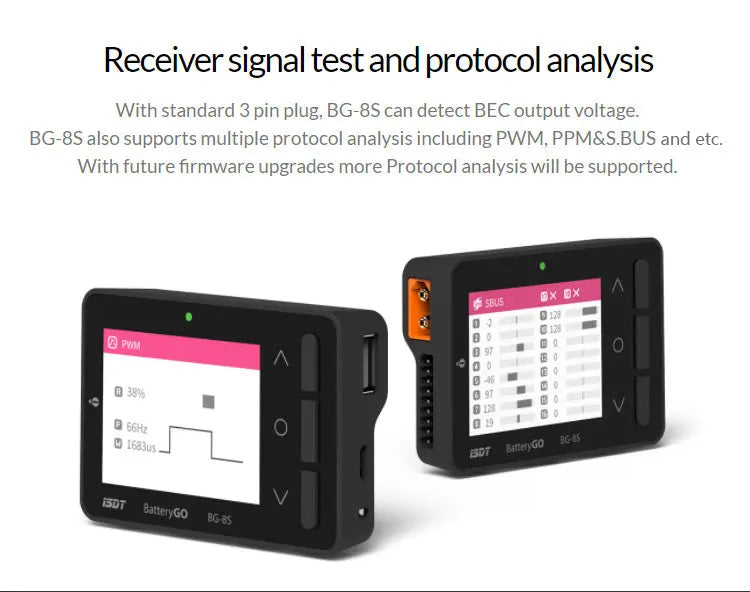

- ✔✔【Receiver Signal Test and Protocol Analysis】: With a standard 3-pin connector, the BG-8S can detect the BEC output voltage. BG-8S also supports multi-protocol analysis including PWM, PPM & S.BUS etc. More protocol analysis will be supported with future firmware updates.

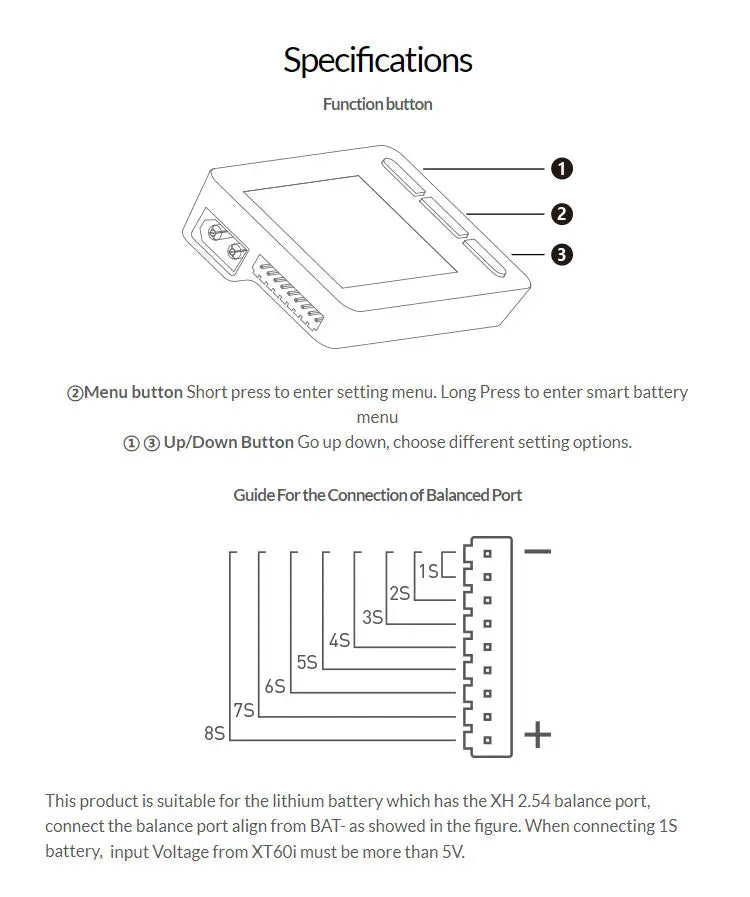

Specifications
Working voltage :5.0V-36V
Input voltage 1s :0.8V-15V
Input voltage 2-8S :0.8V-4.8V
Battery cells :1-8S
Voltage measurement accuracy :0.005V @ 4.2V
Balancing cells accuracy :
Support USB charging :QC 2.0 / 3.0, BC1.2,
Maximum output 12V/2A
Support smart battery :Charging and discharging setting, read battery info and usage history.
Supported Batt. Type :LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) Lilon (1-8S) / NiMH/Cd(1-10S)
Display :2.4320240 260,000 color IPS LCD
Dimension :80 X 55 X 19 mm
Weight :59g
Operating Temperature :0-40
Working Humidity :10%-90%RH (noncondensing)
Storage Temperature :-20-60
Storage Humidity :5%-90%RH (noncondensing)
Package Include: 1 x ISDT BG-8S
Video
