ISDT

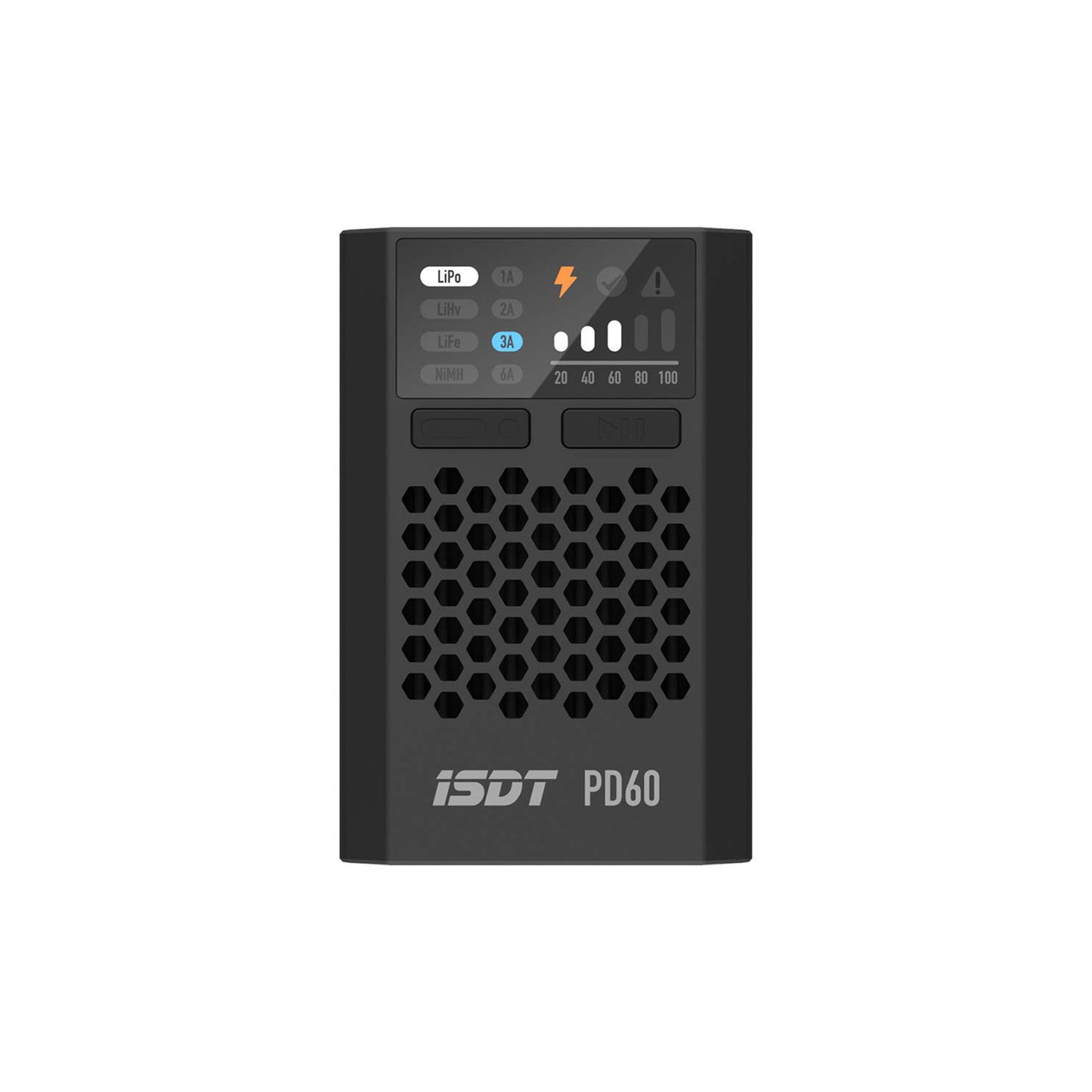

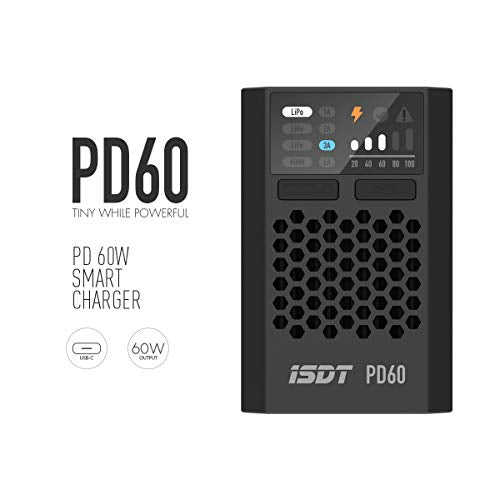

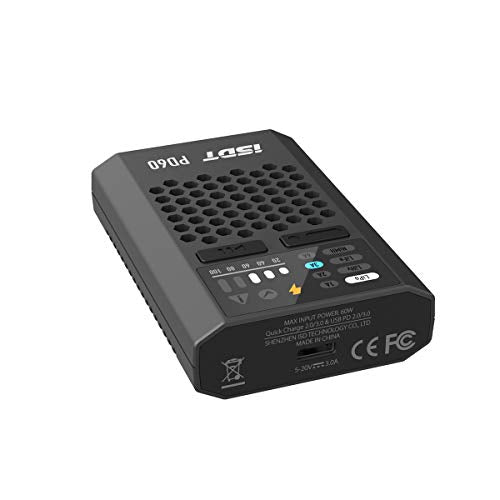

PD60 60W 6A Lipo Balance Charger,RC Battery Balance Charger ,Portable Lipo Charger for Lipo Batteries

PD60 60W 6A Lipo Balance Charger,RC Battery Balance Charger ,Portable Lipo Charger for Lipo Batteries

Regular price $12.99
$19.99 $12.99
–36% Sold out
Shipping calculated at checkout.

PRODUCT MANUAL

DELIVERY

For non-pre-sale products, ISDT processes the order within 2-3 working days after the order was placed, once confirmed, we will ship it according to the order time.

We provide 3 shipping methods:

Shipping Method and Estimated Shipping Time:
Standard Shipping: 15-20 working days
Fast Shipping: 7-15 working days
Expedited Shipping: 3-7 working days
The shipping time should be subject to the time announced by the shipping company. Once the products of your order leave our warehouse, the actual delivery may be affected by events which are beyond our control. Thus, we do not assume any responsibility for any delay in delivery due to unexpected logistics related events.

If any logistics delay occurs, you may send an email to isdt0506@gmail.com, and we will do our best to contact the logistics company to help resolve the issue.

  • ▶【USB-C Power input】 - Compatible with QC 2.0/3.0 and USB PD 2.0/3.0. It supports 5-20V Voltage Input.
  • ▶【Support USB interface to upgrade firmware】 - Connecting the computer through the USB-C interface, upgrade to the latest firmware Always maintain the advanced performance and features.
  • ▶【Concise and Efficient】- With streamlined two operation buttons and clear status indicators, it could be so easy to get started with a smart charger.
  • ▶【Natural convection, silent heat dissipation】 - The all-aluminum radiator combines a honeycomb radiator and a hidden air inlet to quietly take away heat by natural convection.
  • ▶【Compactable, Easy to hold】 - Small size, coupled with PD and QC fast charging protocol, can be easily put in the bag whether in daily life or during travel.

Product description

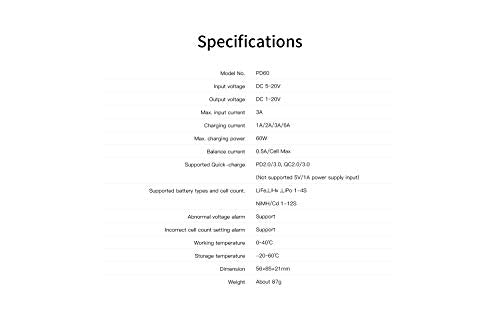

Specification:



Model No.:PD60



Input voltage: DC 5V-20V



Output voltage: DC 1.0V-20V



Max Input Current: 3A



Charging Current: 1A/2A/3A/6A



Max Charging Power: 60W



Balance Current: 0.5A/Cell Max



Support Quick-Charge: PD2.0/3.0,QC 2.0/3.0(Not supported 5V/1A power supply input)



Support Battery Types and Cell Count: LiFe/LiHV,LiPo 1-4S,NIMH/Cd 1-12S



Abnormal Voltage Alarm: Support



Incorrect Cell Count Setting Alarm: Support



Working temperature: 0-40°C



Storage temperature: -20-60°C



Dimension: 56x85x21mm



Connector: XT60



Weight: 87g



Packaging included:



1X ISDT PD60(XT 60) Battery Charger

View full details

Video
