ESC 90 Smart RC Electronic Speed Controller, WP 1080 90/180A børstet motorisk elektronisk hastighetskontroller
ESC 90 Smart RC Electronic Speed Controller, WP 1080 90/180A børstet motorisk elektronisk hastighetskontroller
Couldn't load pickup availability
PRODUCT MANUAL
PRODUCT MANUAL
DELIVERY
DELIVERY
For non-pre-sale products, ISDT processes the order within 2-3 working days after the order was placed, once confirmed, we will ship it according to the order time.
We provide 3 shipping methods:
Shipping Method and Estimated Shipping Time:
Standard Shipping: 15-20 working days
Fast Shipping: 7-15 working days
Expedited Shipping: 3-7 working days
The shipping time should be subject to the time announced by the shipping company. Once the products of your order leave our warehouse, the actual delivery may be affected by events which are beyond our control. Thus, we do not assume any responsibility for any delay in delivery due to unexpected logistics related events.
If any logistics delay occurs, you may send an email to isdt0506@gmail.com, and we will do our best to contact the logistics company to help resolve the issue.

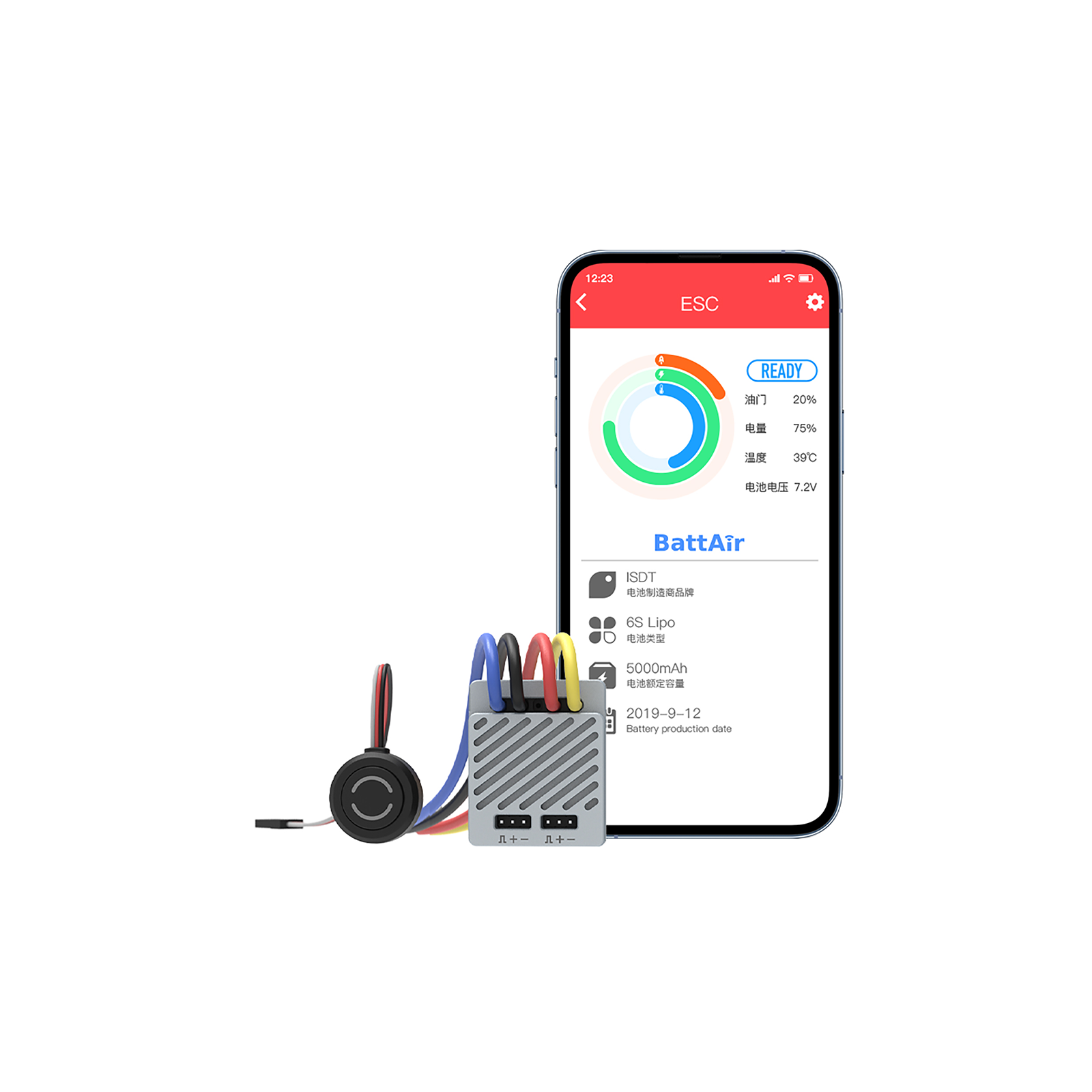

- 【Bluetooth -tilkoblingsfunksjon】 Du kan etablere en trådløs tilkobling med mobiltelefonen din uten ekstra tilbehør. Mobilappen har flere programmerbare parameterinnstillinger, sanntidsdata-spørring, OTA-oppgradering og annen drift. Det er kraftig, praktisk og enkelt å bruke.

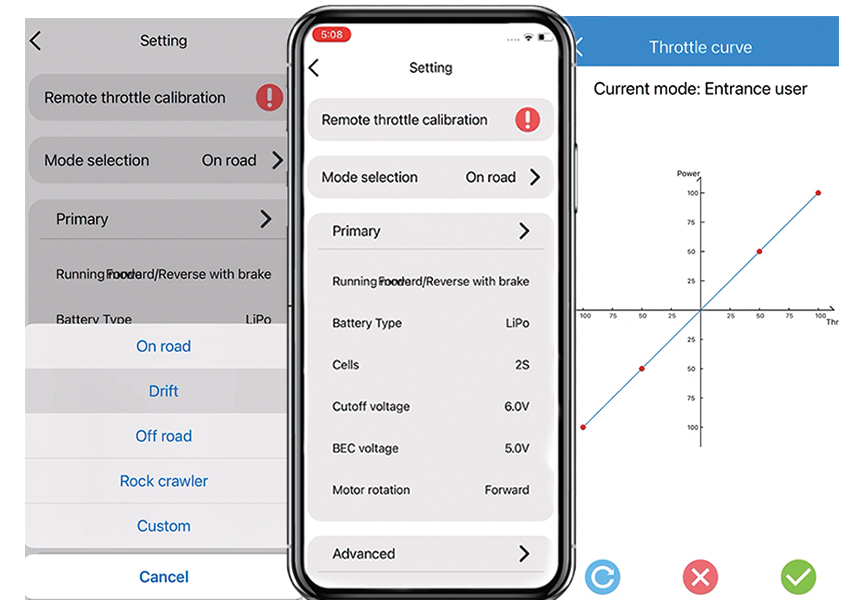

- 【Presis justering】 0.1V trinnjustering, kurvejustering av brems- og akseleratorparametere, slik at brukerne kan være mer hendige og manipulerende, og justere motorens fremoverkraft og bremsekraft nøyaktig, spesialdesignet for RC -krypere som egenskaper som opererer i tøffeste terreng .
- 【Avansert BEC-funksjon】 Innebygd BEC med justerbare utgangsfunksjoner, gir opp til 3A kontinuerlig strøm og støtter 5V til 7.5V via ISD GO-app. Støtter forskjellige kraftige RC -applikasjoner og høyspenningsservoer.
- 【Flere beskyttelsesfunksjoner】 Batteriets lavspenningsbeskyttelse, over temperaturbeskyttelse, gass ut av kontrollbeskyttelse, fordi overspenning og underspenningsbeskyttelse.
- 【Sterk vanntett ytelse】 Fullt vanntett design for alle forhold. (Merk: Vennligst rengjør og vedlikehold etter bruk for å unngå korrosjon)
Spesifikasjoner
| Forts. / Topp strøm ： | ESC 90 ： 90/180A |
| Motortype ： | 540/550/775 børstet motor |
| Batteritype: | 2 ~ 3S Lipo eller 6 ~ 8cell Nimh |
| Applikasjoner: | 1/8 eller 1/10 forskjellige modeller |
| Wire/ Connectors ： | 16Awg-200mm (uten plugg) |
| Vekt: | ca 49 g/bytt omtrent 4,5 g |

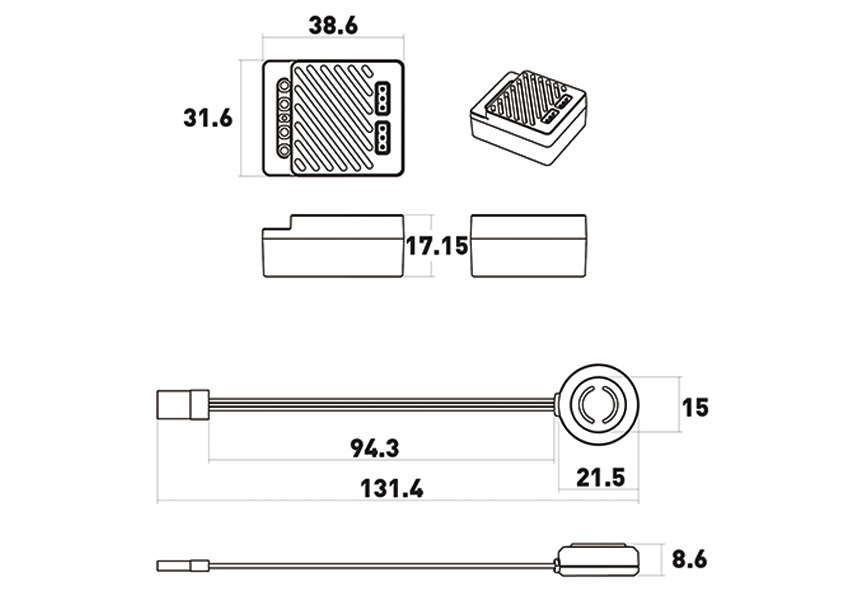

| Dimensjon: | 38,6 × 31,6 × 17,15mm |
Pakke inkludert:
1 X ESC 90
I have bought two of these and they both have a problem with the rename function it times out. It won't let me rename it . I've emailed the manufacturer and have heard nothing from them. The rest of the system works OK so far I have six of these and the other ones do not have the problem maybe now they will give me some type of answer or solution
This is the best brushed esc you buy at this price point. I have 3 70s and 1 90 and they all work great. What people need to under stand is they need to update the firm ware first and then when setting up you need to make 1 change then save it and then move on to the next setting. This seems to work 90% of the time. The only thing I’m struggling at it I’m trying to change the name of a truck and it times out every time. Not sure why but if that’s the only issue with a $25 esc than so be it.
I purchased 5 esc ISDT (4 ESC70 and 1 ESC90) an 4 are faulty ! Only 1 is still running.
I give a chance to your last ESC90 and again ... faulty ESC ! I have ten crawlers and multiple ESCs (fusions, 1080, axes..) All are working just fine. The non faulty ISDT ESC70 work like a charm, but it's the only one ! I'm very disappointed about the reability of your ESCs.
