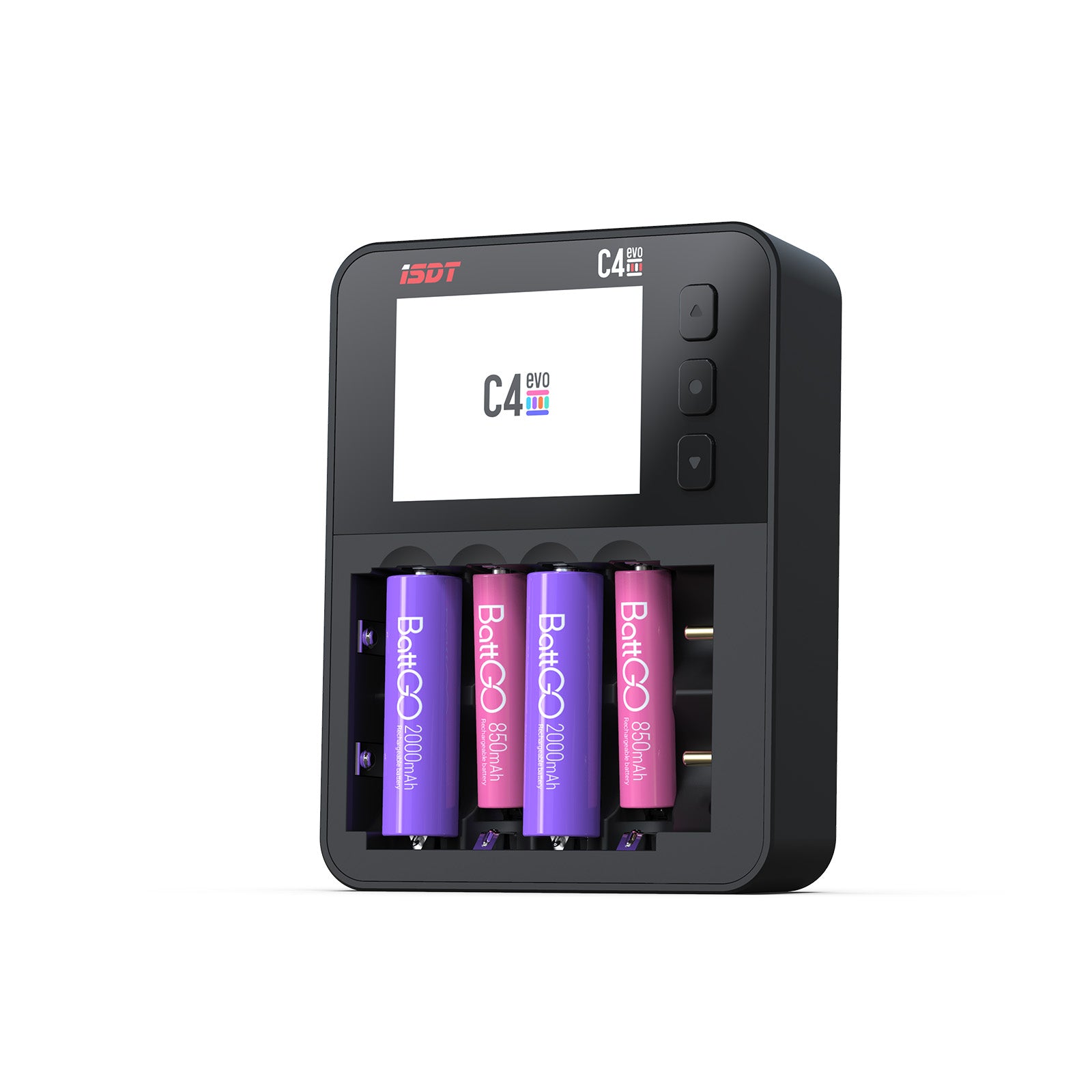

C4 AA AAA 18650 26700 배터리 IPS 디스플레이 화면 용 EVO 스마트 배터리 충전기
C4 AA AAA 18650 26700 배터리 IPS 디스플레이 화면 용 EVO 스마트 배터리 충전기
픽업 사용 가능 여부를 로드할 수 없습니다.
PRODUCT MANUAL
PRODUCT MANUAL
DELIVERY
DELIVERY
For non-pre-sale products, ISDT processes the order within 2-3 working days after the order was placed, once confirmed, we will ship it according to the order time.
We provide 3 shipping methods:
Shipping Method and Estimated Shipping Time:
Standard Shipping: 15-20 working days
Fast Shipping: 7-15 working days
Expedited Shipping: 3-7 working days
The shipping time should be subject to the time announced by the shipping company. Once the products of your order leave our warehouse, the actual delivery may be affected by events which are beyond our control. Thus, we do not assume any responsibility for any delay in delivery due to unexpected logistics related events.
If any logistics delay occurs, you may send an email to isdt0506@gmail.com, and we will do our best to contact the logistics company to help resolve the issue.

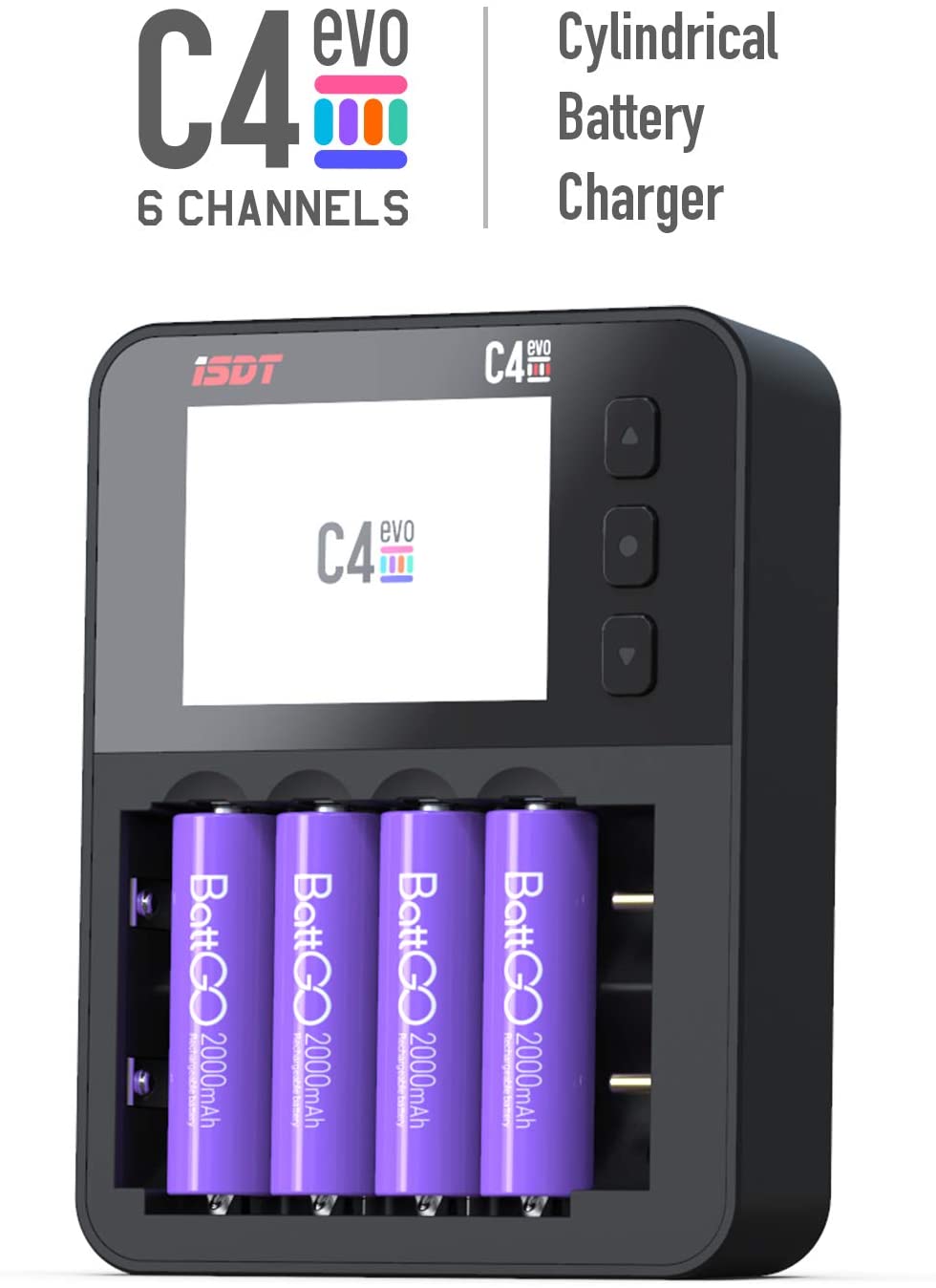

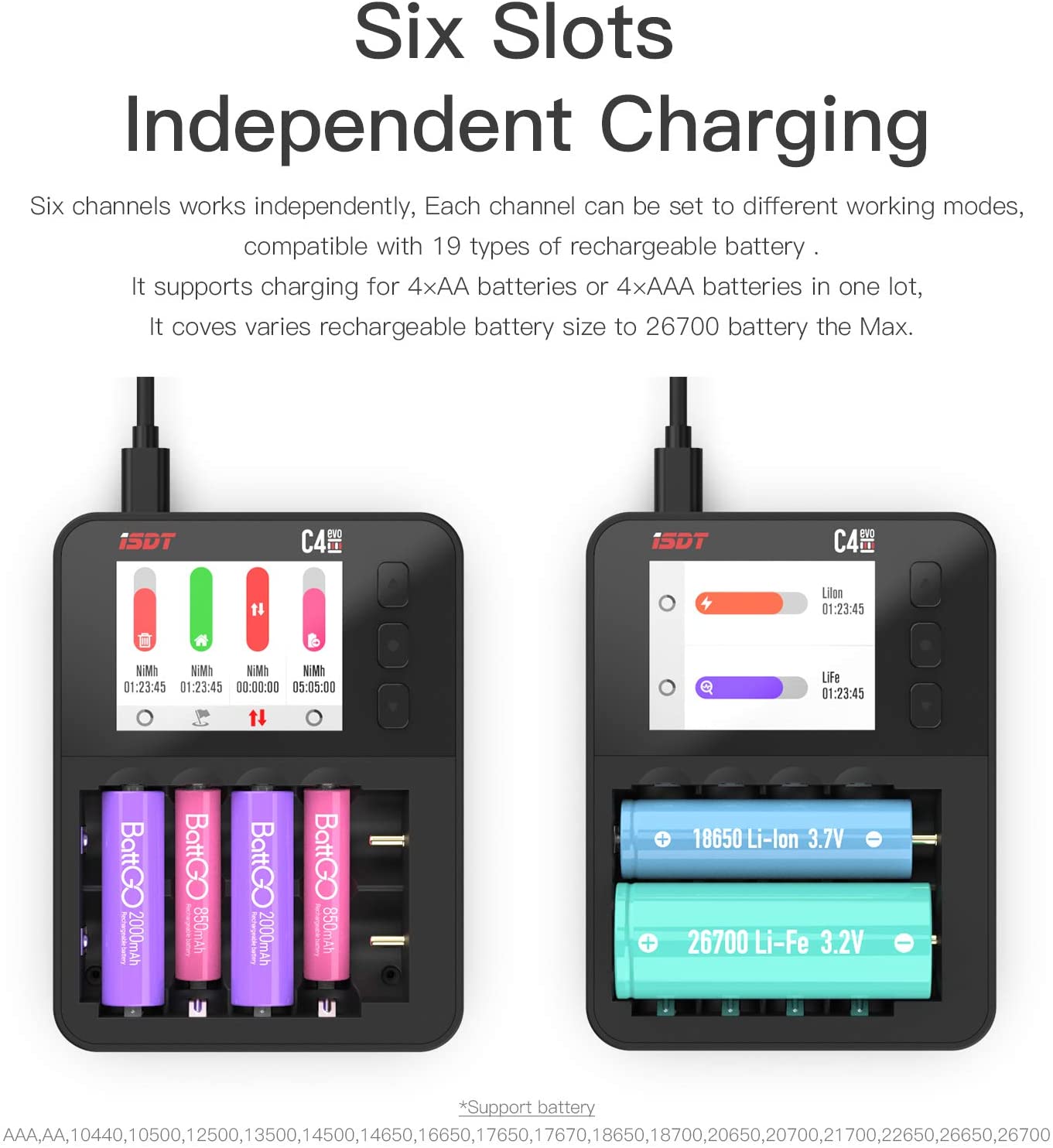

- 6 개의 슬롯 독립 충전】 6 채널 6 채널은 독립적으로 작동하며 각 채널은 19 가지 유형의 충전식 배터리와 호환되는 다른 작업 모드로 설정할 수 있습니다. 4*AA 배터리 또는 4 개의 AAA 배터리에 대한 충전을 지원합니다. 크기 26700 배터리 최대 배터리 (*배터리 AAA, AA, 10440,10500,12500,13500,14500,14650,16650,17650,17670, 18650,18700,20650,20700,21700,22650,265700)

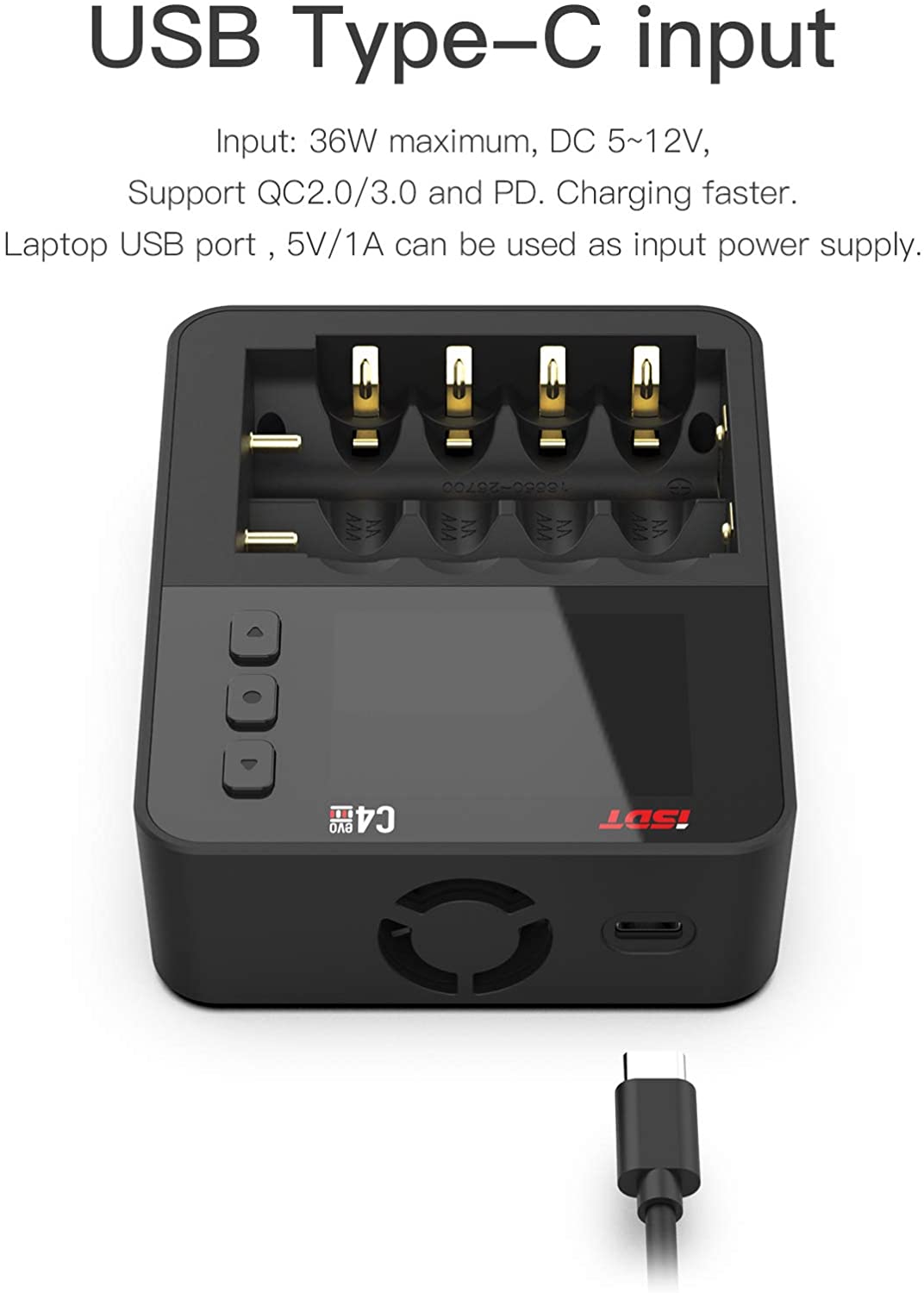

- USB Type-C 가져 오기】 36W 최대, DC 5 ~ 12V, QC2.0/3.0 및 PD를 지원합니다. 더 빠른 충전. 랩탑 USB 포트, 5V 1A는 입력 전원 공급 장치로 사용할 수 있습니다.

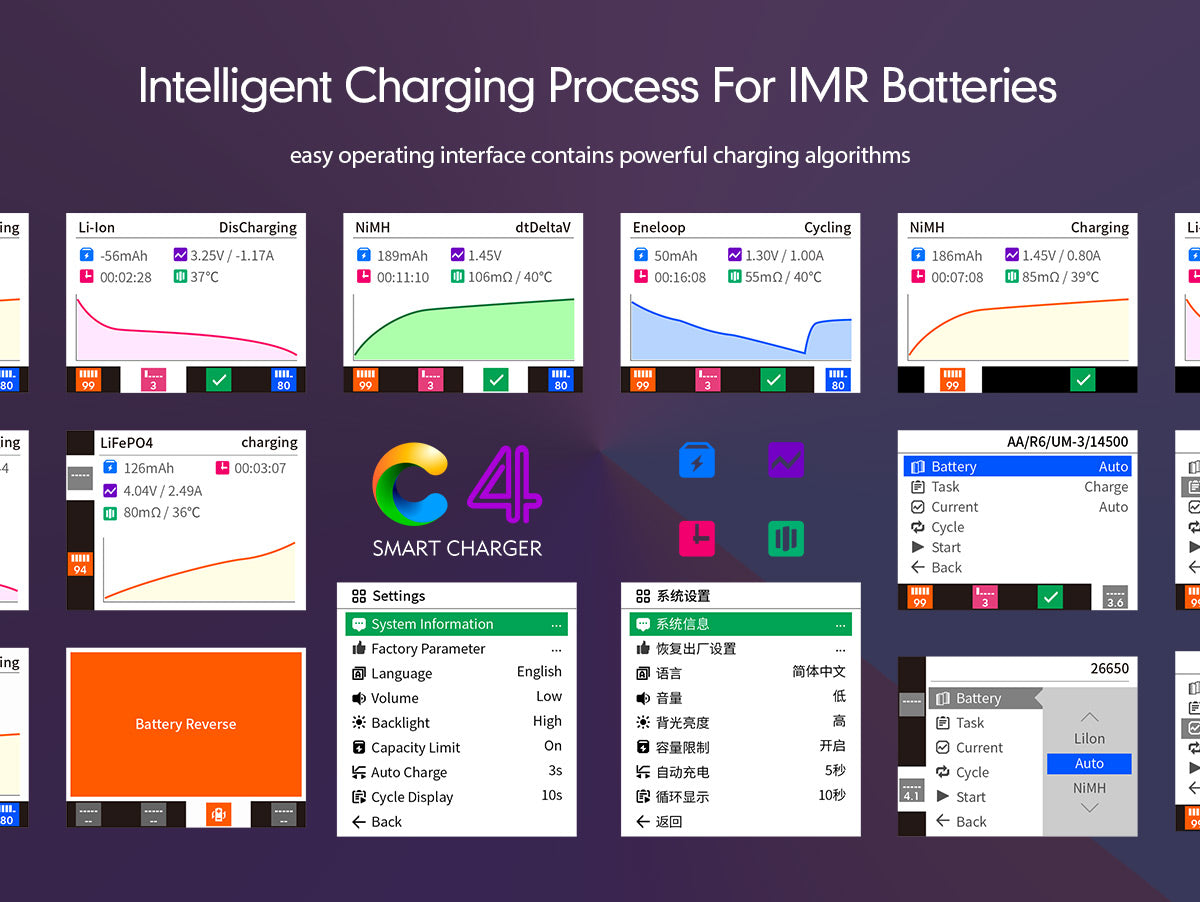

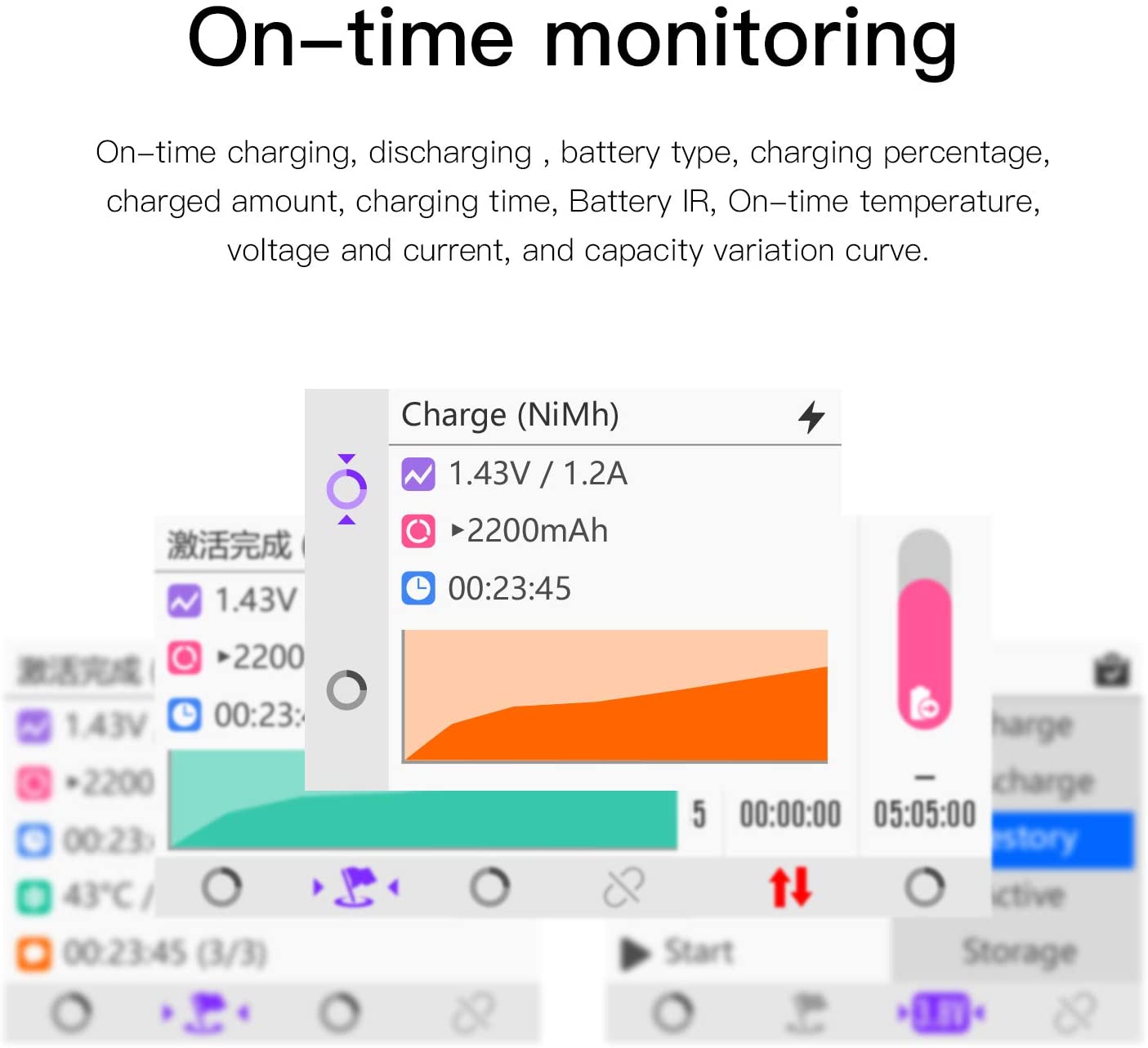

- 【정시 모니터링 -time 정시 충전, 방전, 배터리 유형, 충전 백분율, 충전 금액, 충전 시간, 배터리 IR, 정시 온도, 전압 및 전류 및 용량 변동 곡선.

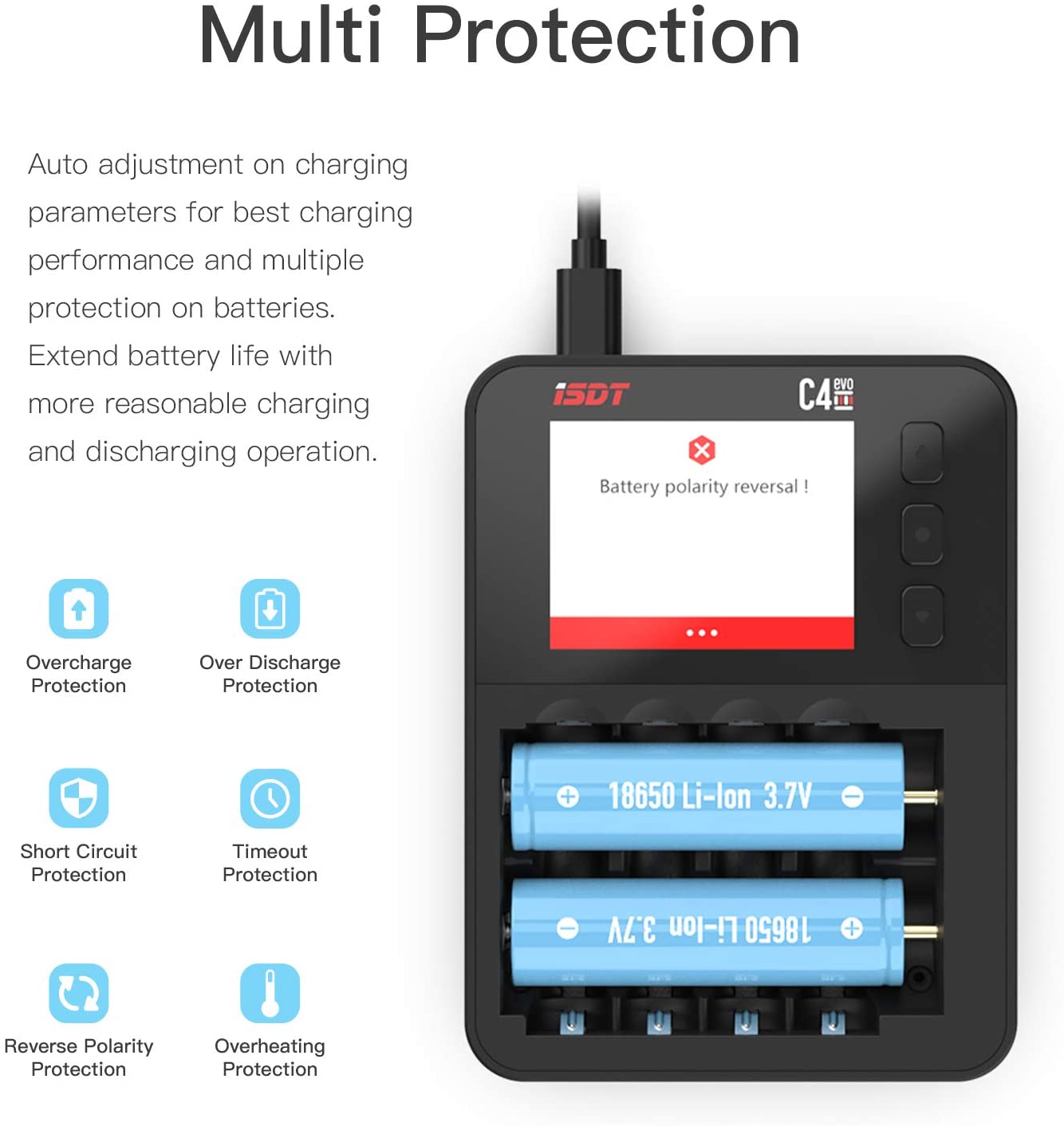

- 【다중 보호 protection 충전 성능을위한 충전 매개 변수에 대한 자동 조정 및 배터리의 다중 보호를위한 다중 보호.

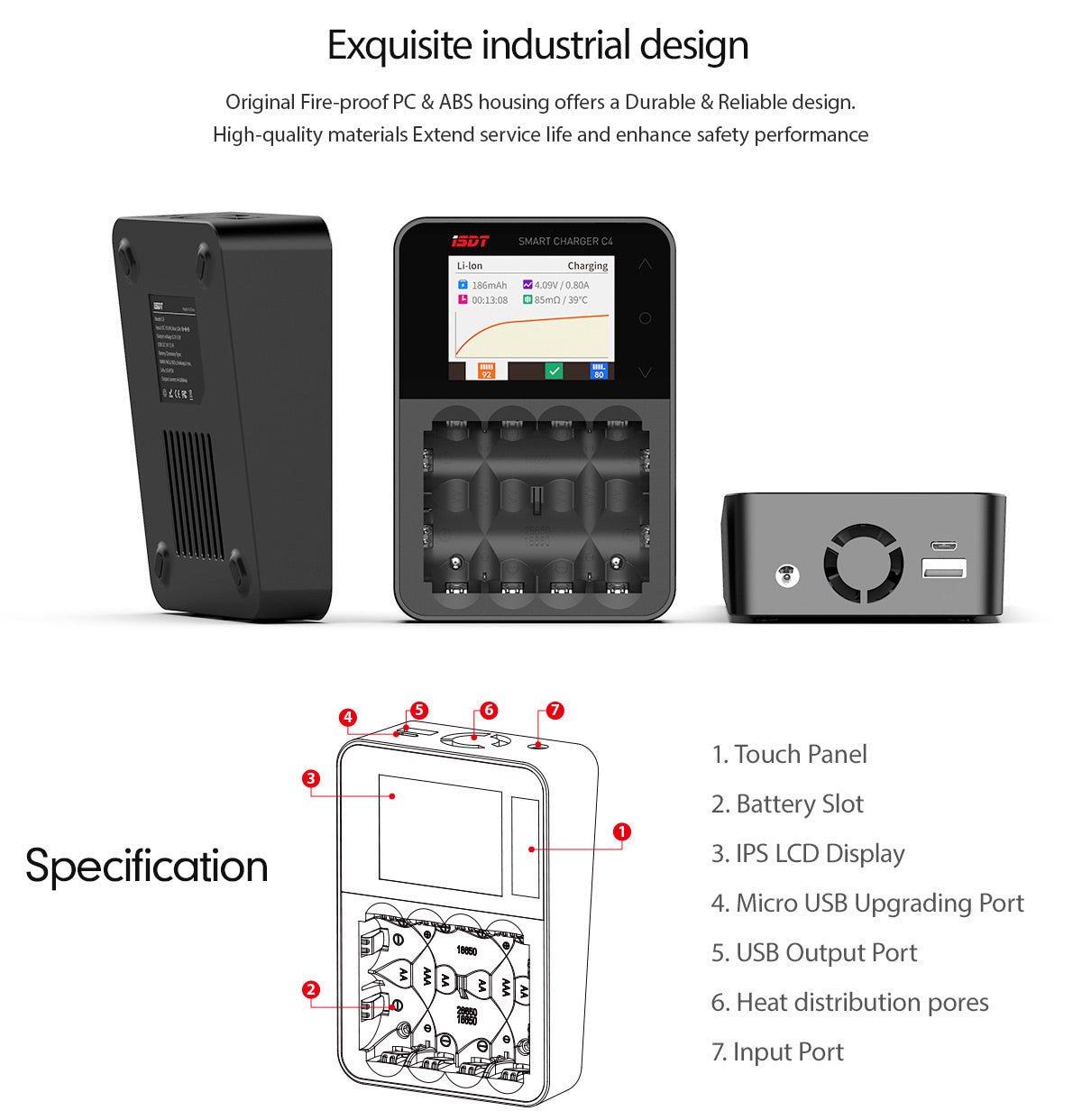

- 【음소거 팬 및 금화 스프링】 C4 EVO의 음소거 팬, C4 팬의 소음 문제를 향상시킵니다. 금박 스프링, 그것은 C4 EVO의 서비스 수명을 확장합니다.

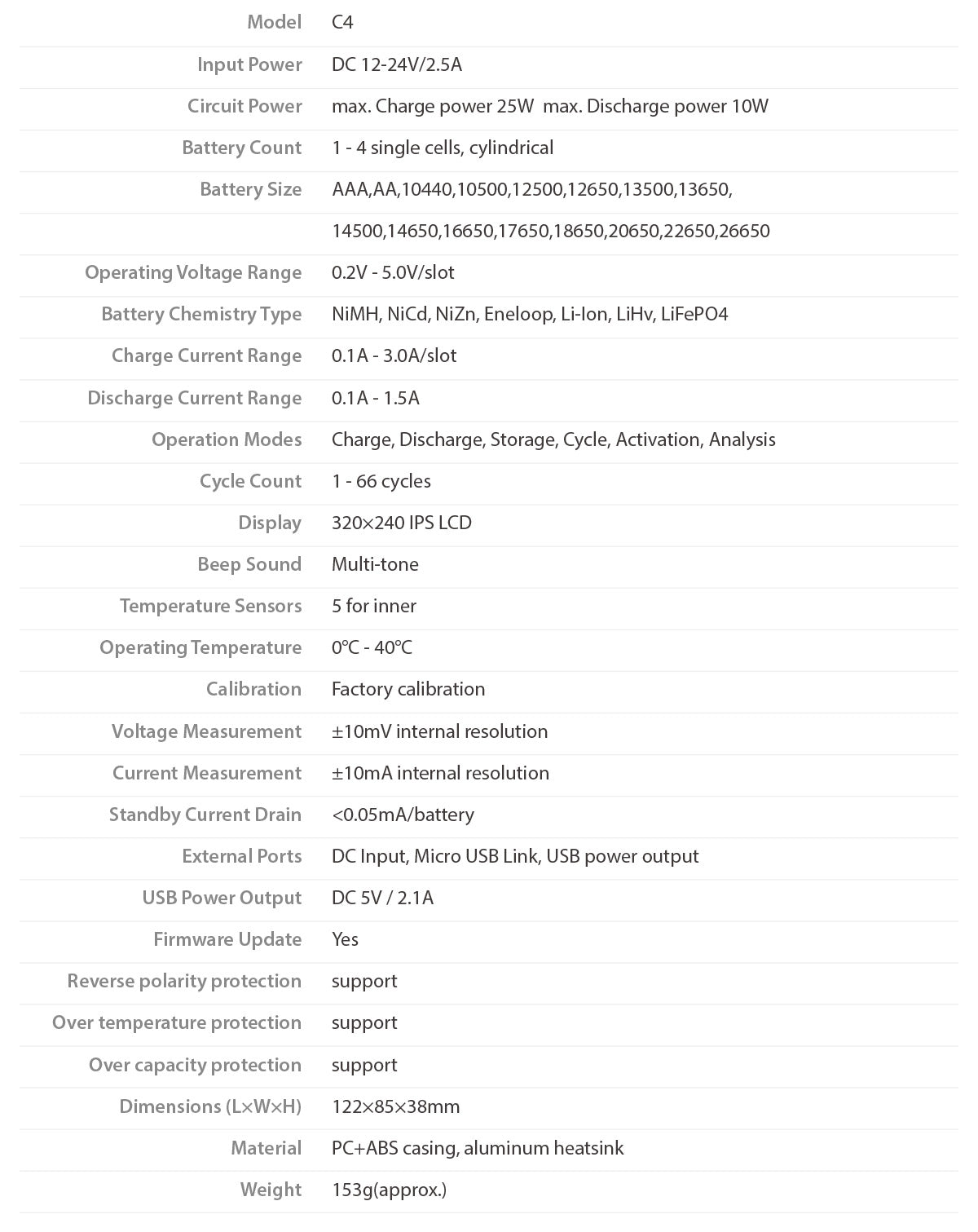

| 모델: | C4 EVO |
| 배터리 수 : | 1 ~ 4 실적 배터리 |
| 배터리 크기 : | AAA, AA, 10440,10500,12500,13500,14500, 14650,16650,17650,17670,18650,18700, 20650,20700,21700,22650,26650,26700 |
| 배터리 유형 지원 : | Li-Lon, Life, Lihv, Nimh, Nizn, Eneloop |
| 작동 전압 범위 : | 5 support 12V (지원 QC, PD 프로토콜) |
| 전하 전류 범위 : | 0.1 ~ 3.0a (수평), 0.1 ~ 1.5A 밸런스 (수직) |
| 방전 전류 범위 : | 0.1 ~ 1.5a (수평 엽 추), 0.1 ~ 1.0a ie (수직) |

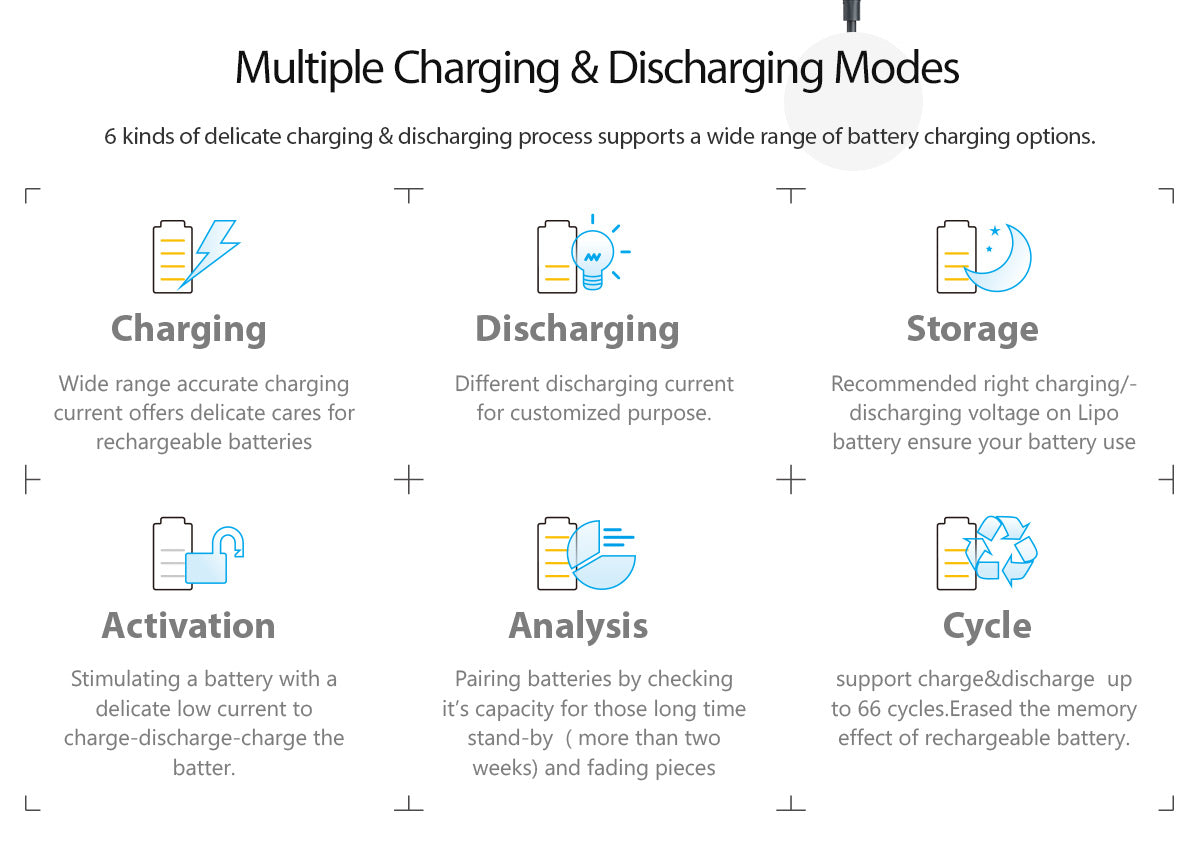

| 작동 모드 : | 충전, 배출, 저장, 파괴, 순환, 활성화, 분석 |

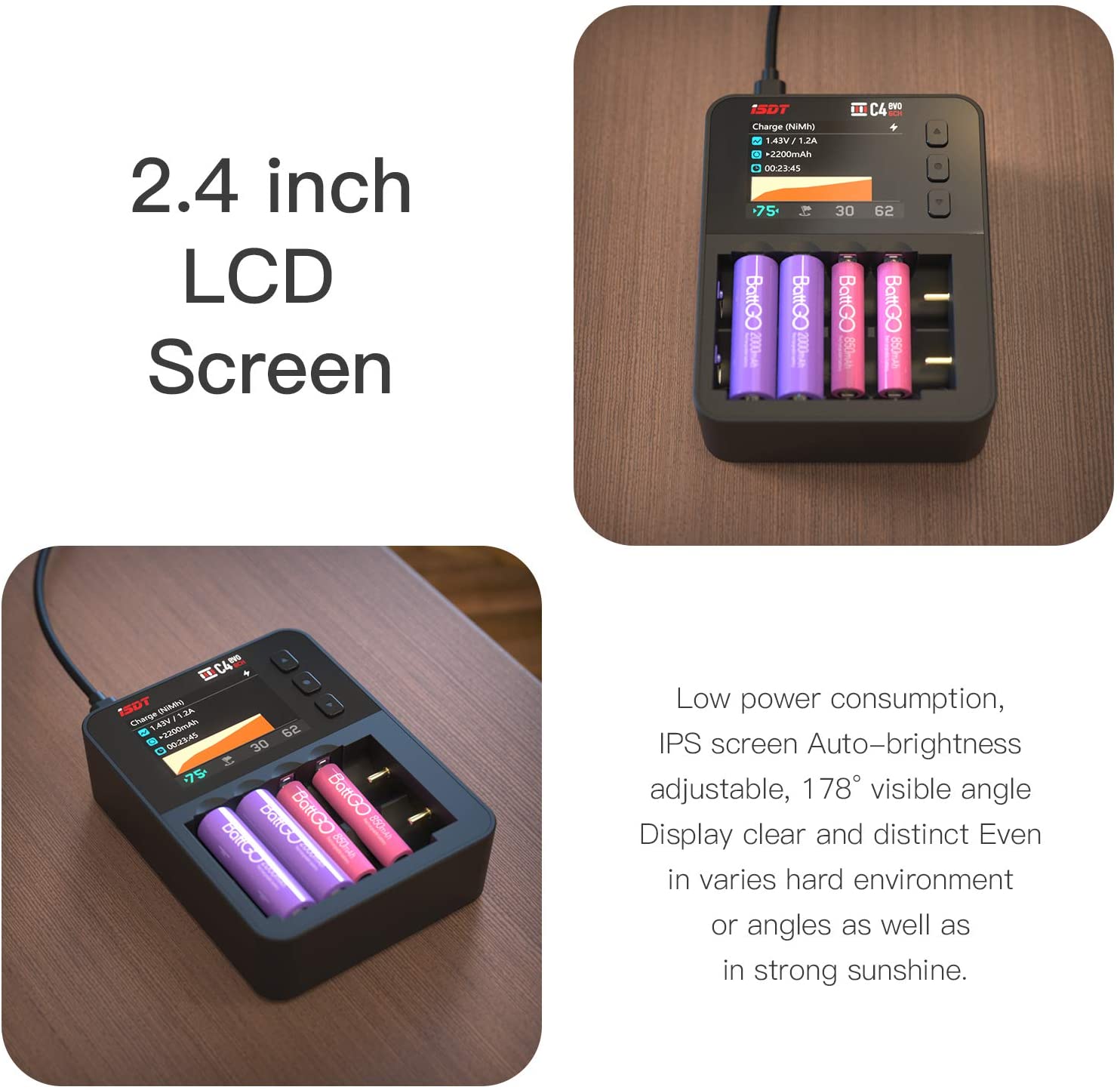

| 표시하다: | 320 × 240 IPS LCD |
| 경고음 소리 : | 멀티 톤 |
| 온도 센서 : | 내부의 경우 6 |
| 작동 온도: | 0~40℃ |
| 전압 측정 : | ± 10mv |
| 현재 측정 : | ± 10ma |
| 대기 전류 배수 : | <0.05ma/배터리 |

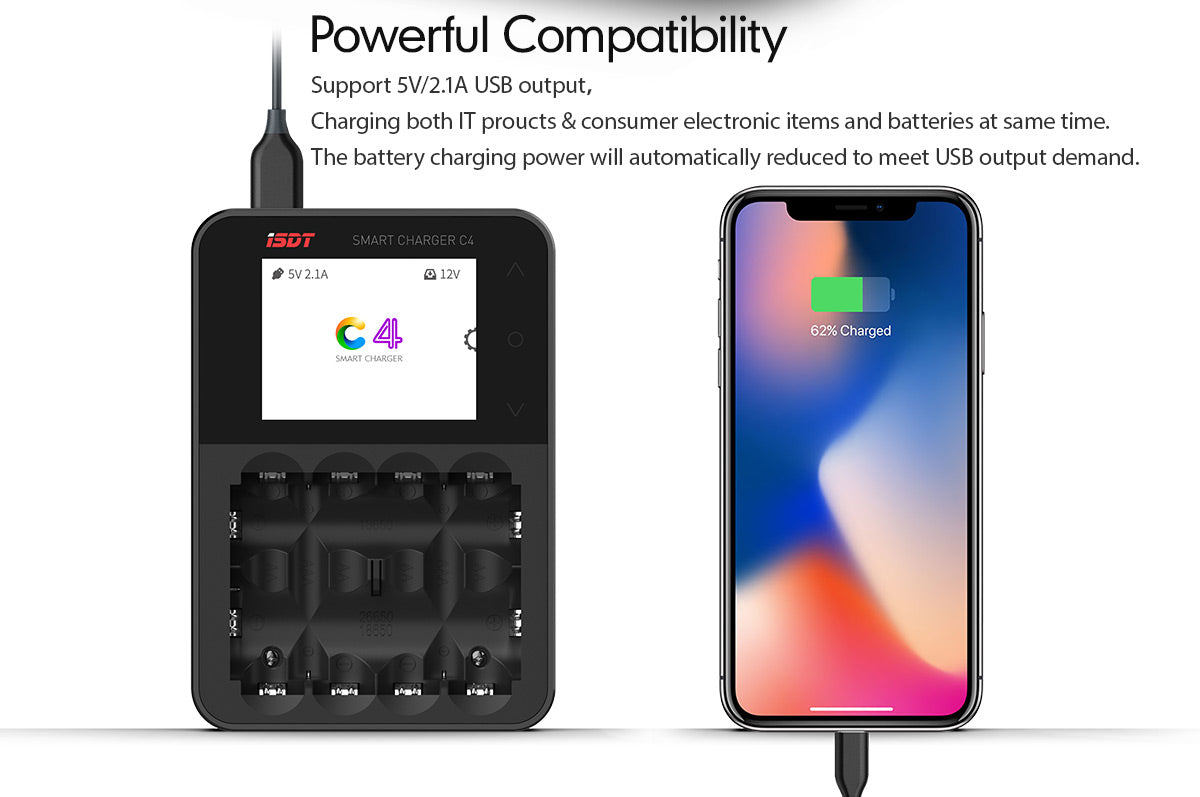

| 외부 포트 : | USB 전원 출력 최고 (Type-C) |
| 펌웨어 업데이트 : | 지원하다 |
| 역 극성 보호 : | 수직 물리적 방지 방향 연결, 수평 하드웨어 방지 방지 연결 |
| 과열 보호 : | 지원하다 |
| 과잉 용량 보호 : | 지원하다 |
I have been using the C4 Air for some time, and recently I had the opportunity to use the C4 Evo. It is an exceptionally well-designed product—the pulse discharge, analysis features, and the increased charging power enabled through firmware updates are truly impressive improvements.
I believe that adding functions such as maintaining a specified voltage during charging, as well as discharging to match a designated voltage after charging, would further elevate the already excellent capabilities of the C4 Evo. These features are increasingly in demand among users today.
Such enhancements could be achieved by expanding the selectable voltage range for the current pulse discharge function, allowing adjustment from 1.10V to 1.45V.
Although subtle, this addition would make the C4 Evo even more valuable, as it aligns with the growing trend among users who not only seek high‑power charging but also want to maintain specific voltage ranges for extended use.
It has bad wire connection on USB, so it keeps rebooting or shuts down for good like it was not connected.
And also, it DOES NOT charge 4 AA ou 4 AAA batteries at the same time. It keeps reinitializing one channel, randomly. It does not care what charger you use, a 10W, or a 60W.
I have one and I can’t update and don’t working don’t charge the battery.
Good looking charger but as mentioned by other review it has an annoying high pitch sound. And I wish there was an option for charging 4x or more 18650 analyzing many batteries takes very long.
Did 18500 could it recharge with it ?
